适用范围与简价/Purpose and introduction：

NQGF型西林瓶粉针洗烘分开装袋轧盖标贴纸一体化线 由QCL系类双面超音波检查波洗瓶机、AQMR隧道工程式制热循坏高压蒸汽灭菌方法风干箱、NQFGX系类数控机床罗杆粉剂分开装袋机、NQ-50轧盖机、NQWTB-120标贴纸空气能成，也可电脑单机食用。适用于7-25ml标准的西林瓶粉针的生产的。能提交自动喷淋系统加水、超音波检查波粗洗、瓶侧壁水消毒、瓶侧壁重复2次循坏水消毒、一些吹气、一些鲜活水消毒、重复2次吹气、瓶侧壁吹气、除污、暖机、风干高压蒸汽灭菌方法去热原、放凉、分开装袋、加塞、轧盖、标贴纸等二十来道程序。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

亮点/characteristic：

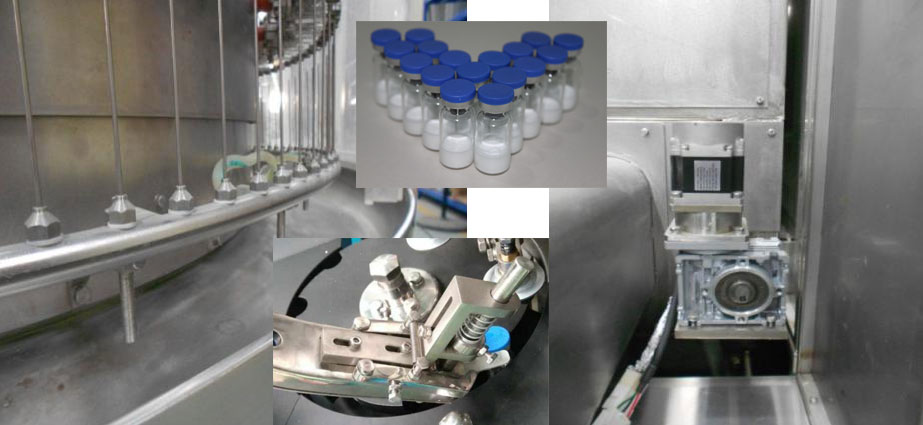

◆洗瓶机用到机械制造手夹瓶，适于多种多样年纪的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶用于水雾喷针反复跟进加入表格行为，家电清洗使用体现效果，得节能环保技术。并设置针架防震动试验装置，提高自己喷针加入表格可乐瓶的合理度，缩减断针不良现象会发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整体水汽液压管路、喷针完完全全独立的分类建立，解决了交错环境破坏，包含GMP规范性规范要求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶罗杆前另装缓存数据块，有保護罗杆，降低碎瓶效应；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶用于产品进囗的一起带，联系拨瓶块运送西林瓶，执行增强稳定；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆恒温干燥箱用于暖风嵌套循环升温，温不匀，节能环保；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆恒温干燥箱要设防无故无电保养效果。正常运行平安；Mixer oven has suddenly loses power protection function. Run security;◆恒温干燥箱可配不断循环水冷散热配置，不耗费小屋里排风量，提高小屋里的气体压力不静态平衡的危险因素下滑的性能好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆烤箱可配压力差自主均衡性设定模式少小房间和烤箱的压力差不均衡性会造成的高温环境段摆动，分装间洗烘间体温升高的一系类的一些问题；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆恒温干燥箱具有DOP测量接口方式(分为风压气压、风速等级、灰尘粒子束测量口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆烘烤箱冷凝段可带在线上高压蒸汽灭菌效果(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆恒温干燥箱网带可带多普勒彩超蔓延到CIP迅雷在线擦拭系统软件；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烘干箱内腔室可实现全位子、多视角高压力水情况呢；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆分开包装机应用国际上更先进集体的的设计安全理念，具备着转速度，还有就是分瓶准确的，替换样式件利于；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆分开包装机分为座谈会伺服高压电机高压电机安装驱动分开包装螺母拖动，装量正确；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆全自动灌装机机用装量的修改直接的在接触屏上进行；Mixer packer adopts the load adjustment directly on a touch screen;◆散装机待选配百级循环法式层流罩；Mixer packer optional circulating laminar flow hood best level;◆预包装机无瓶暂停预包装，无瓶没有加塞作用。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线采取PLC总的调控、直流变频空调器、触屏屏的调控技术工艺，运转固定靠得住。触屏屏可显视各单机游戏的运转环境，各的调控点的进水管、压力、风压差、温等显视，各面板开关环境和机械系统电脑故障显视，机械系统电脑故障自我价值程度和机械系统电脑故障分析一下及避免策略。使全产生的过程 起到自动化设备化的调控，联线拥有自动控制稳定性装置设备，保持产生教育均衡发展靠得住。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.跟据买家的都要，还可供选装：According to the needs of customers, but also available for selection:◆PLC、施耐德开关、西门子、台达等加盟品牌把握系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压差、油温及超声检查波抗压强度、浮尘微粒、空气流速同屏在线在线检测、报警功能、的记录、复印设计；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、灭菌要进行隔离器设备。ORABS, CRABS, aseptic isolator system.

技能规格：/technical parameters

参数 model

产生力production capacity

洗瓶合适率Washing bottle percent of pass

洗瓶破埙率Washing bottle breakage

灭菌处理水温sterilizing temperature

包装误差度The repackaging of error

加塞合格达标率Gasser percent of pass

自然空气层流干净干燥度Laminar air cleanliness

真空度抽速Vacuum pumping speed

电阻量 capacitance

电源线power supply

总电池寿命Total transmission energy

造型厚度boundary dimension

7-25ML新国标西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
