应用与概况：/Purpose and introduction

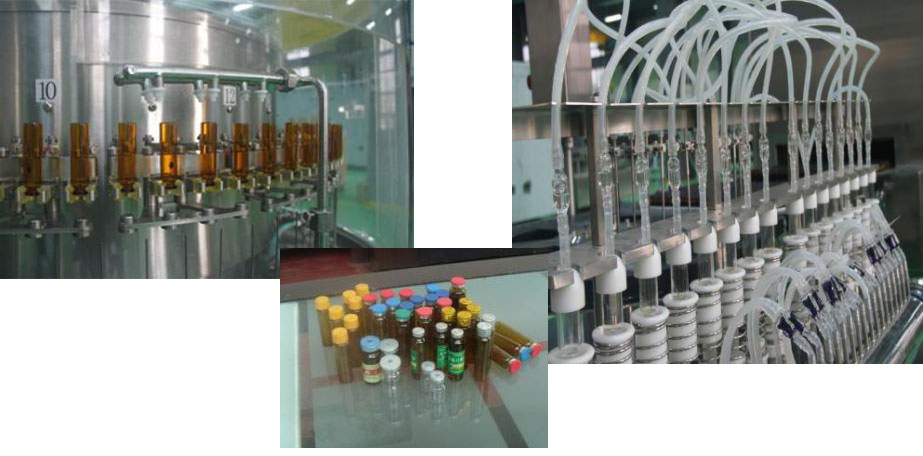

服食液洗烘灌轧连动机制线由旋转式彩超波洗瓶机、队道式内循环往复 循环往复无菌干燥箱、服食液罐装研发线轧盖机等組成，适于于 5-30ml 等多种规 格服食液瓶的研发。可成功完成对产品研发中安瓿瓶淋水、彩超波刷洗、冲水、充 气、烘干阶段无菌、冷凝、罐装研发线、轧盖等加工制作工艺 布骤的连动机制开机运行。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

共同点:/characteristic

◆洗瓶机用于厂家手夹瓶，可用许多规模的水瓶座；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶通过雾气喷针往复运动监视放进去方试，洗实际效果最好的，厉行节约新能源。并可设针架防会抖试验装置，挺高喷针放进去塑料瓶子的更强度，缩减断针現象形成；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶另一雾水导压管、喷针截然独有错开，不要了对称影响，复合GMP正规规定；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶挤出机螺丝杆前加装有缓冲区块，有保護挤出机螺丝杆，下降碎瓶用Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶用综合进口商数据同步带，连接方式拨块输送带内服液，电脑运行动态平衡正规In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烤箱用于红外线受铜管，不锈钢材质的受铜管多层受热温湿度匀称性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆灌装生产线轧盖机供选择配工业陶瓷泵、不透钢泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装线无瓶止灌，无瓶不轧盖功用。Pieces filling without bottle filling, no bottle no rolling function.◆整线选择PLC总管控、变频调速器器、触摸式式屏管控技巧，开机操作相对稳定是真的吗。触摸式式屏可信息信息显现各pc单机的开机操作心态，各管控点的压差、大气压、风速、摄氏度等信息信息显现，各触点开关心态和出现错误问题信息信息显现，出现错误问题自我认识确诊和出现错误问题数据分析及查出方案。使全研发时候提高自己化管控，联线都具有三机电气稳定性传动装置，绝对研发均匀是真的吗。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.要根据消费者的还要，还可供加装音响：According to the needs of customers, but also available for selection:◆PLC、斯耐德、西门子、台达等加盟品牌有效控制控制技术；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气阻力、水的温度及彩超波抗压强度、尘埃什么意思激光束、风力在线视频测量、短信报警、信息、直接打印操作系统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌检测防晒隔离霜器软件。Mixer ORABS, CRABS, aseptic isolator system.

技巧性能指标：technical parameters

常用要求Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装设备控制精度Filling accuracy(%)	≤ ± 2.5
分装头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖不及格率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
