的用途与简洁/Brief Introduction：

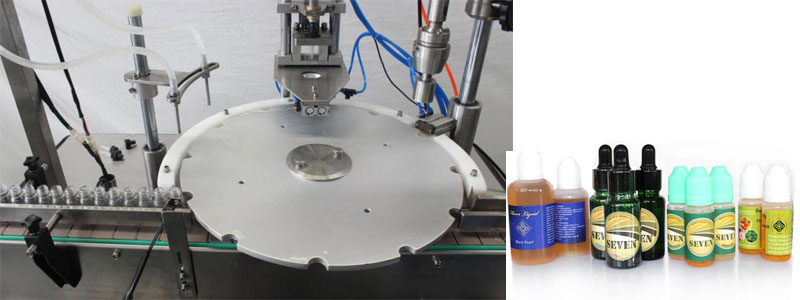

滤油机不适使用2-30ML各个板材的圆圈扁形可塑料或的玻璃制瓶的眼药粉包装.滤油机由高导致精度凸轮轴轴度数结构展示度数等分盘准确品牌定位上塞上盖;提高度凸轮轴轴链机械传动展示旋盖头的升降系统;恒力矩旋盖;收缩泵压力容器检验包装;触模屏管理.无瓶不包装,要加内塞,外盖.具准确品牌定位准确度,链机械传动平缓,保护措施瓶子,压力容器检验准.工作简单化等优点有哪些。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特征/Characteristic：

◆微PC添加、装量正确、操作方法便宜。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机设备电机转速可做无级变速调频调节。the mainframe running speed is stepless frequency conversion.◆产出量电脑自动降钙素原检测把控好。the product quantity can be controlled. ◆很多种机械故障提示信息职能(如低风压。无罐装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆系统自己熄火系统，对某一在轨道产生联续无灌装线、无内塞的情况可系统自己熄火。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术应用性能参数/Main Technical Parameters：

应用样式Filling Volume	2-30ml
产生业务能力Productivity	30-60瓶/分  70-100瓶🌌/分30-60bottles/min    70-100bottles/min
罐装定位精度Filling Precision	≤±1%
电源线 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
定时上塞率Stoppering rate	≥99%
气动阀门Air Supply	1.3 m3/h    0.4-0.8Mpa
电率 Power	2.0 kw
仪器净含量Weight	550 kg
外观形状宽度Dimension	1800*1000*1500mm
