应用领域与百度百科/Brief Introduction：

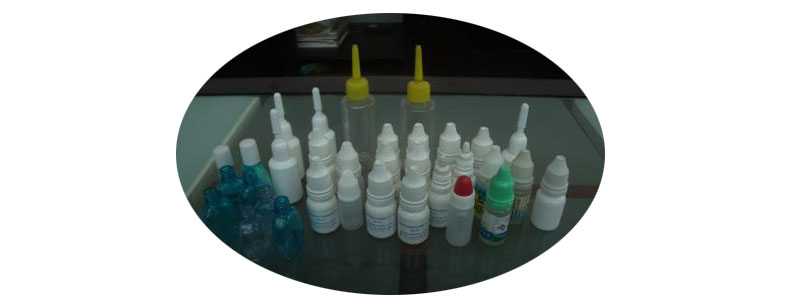

该设备可在于2-30ML各类质量的半圆扁形塑料管或安全玻璃瓶子的眼药液罐装、光电烟油等小含水量罐装.该设备由高表面粗糙度凸轮机构系统量程系统供给量程等分盘追踪产品定位上塞上盖;加强度度凸轮机构系统转动齿轮供给旋盖头的生降;恒转距旋盖;儒动泵收费罐装;触控屏调控.无瓶不罐装,没加内塞,外盖.具追踪产品定位高精度,转动齿轮市场平稳,庇护盖子,收费准.的操作简单化等长处。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

亮点/Characteristic：

◆微电子产品修改、装量精准、操作的简便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆设备主机速比可使用无级变速直流变频调压。the mainframe running speed is stepless frequency conversion.◆产出量自动的定量分析管控。the product quantity can be controlled. ◆多种多样机械故障温馨提示实用功能(如低大气压力。无分装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆系统自功断电的功能，对某一组件导致不断无灌装设备、无内塞现象可系统自功断电。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术设备产品参数/Main Technical Parameters：

符合要求Filling Volume	2-30ml
生产加工特性Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
分装精密度Filling Precision	≤±1%
电压 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
会自动上塞率Stoppering rate	≥99%
源Air Supply	1.3 m3/h    0.4-0.8Mpa
电功率 Power	2.0 kw
机器人净重量Weight	550 kg
自己的外观尽寸Dimension	1800*1000*1500mm
